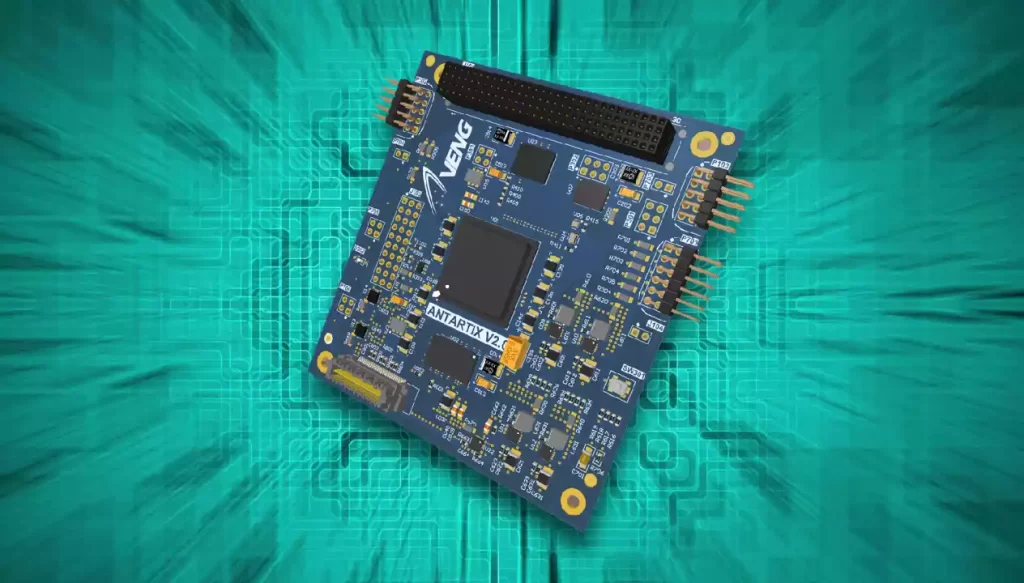

Antartix OBC Computer
Antartix v2.0 OBC is a high-performance, user-friendly onboard computer and FPGA development board built around the AMD Xilinx Artix-7 FPGA. Optimized for running MicroBlaze and PetaLinux, it delivers exceptional processing capabilities and is ideal for a wide range of space applications.
Fully compatible with the PCI/104-Express form factor, it ensures seamless integration into LEO nanosatellites, microsatellites, and launch vehicles. Its comprehensive set of interfaces enables reliable connectivity for subsystems and payloads, making it a versatile solution adaptable to the demands of any mission.
Engineered for versatility and reliability, Antartix v2.0 OBC is built entirely with extended temperature range components, ensuring robust performance in harsh environments.
It features the AMD Xilinx XC7A200T–FBG484I FPGA, and is also available in a variant populated with the XQ7A200T-1RB484M, offering defense-grade qualification for mission-critical applications.
|
FORM FACTOR |
PCI/104-Express Fully compatible |
|
FPGA |
AMD Artix-7 XC7A200T-1FBG484IHz |
|
MEMORY |
DDR3L SDRAM 4Gb 933 MHz20 ns MT41J128M16HA-125:K |
|
FLASH MEMORY |
On board - NOR Memory IC 128Mbit SPI - Quad I/O 104 MHz |
|
ADDITIONAL MEMORY |
BPI On board - NOR Memory IC 512Mbit Parallel 133 MHz 96 ns |
|
PCIE INTERFACE |
x1 lane PCIe Gen1.0(2.5GT/s) |
|
PCI BUS |
Local Bus |
|
General purpose I/O |
x11 @ 3.3V, x7 @ 1.8V |
|
POWER CONSUMPTION |
5 VDC, X.X A |
|
DIMENSIONS |
Length: 3.775 inches (95.89 mm)
Width: 3.550 inches (90.17 mm)
Stand-off Height: 0.600 inches |
